// Product Introduction

Zeolite Concentration Rotor + Regenerative Thermal Oxidizer (RTO)

The zeolite concentration rotor + Regenerative Thermal Oxidizer(RTO) system is suitable for treating low-concentration, high-volume organic waste gas. The system primarily consists of a pre-treatment unit, a zeolite concentration rotor, an RTO unit, a fan, and a stack.

Get Quote
Share:
// PRODUCT OVERVIEW

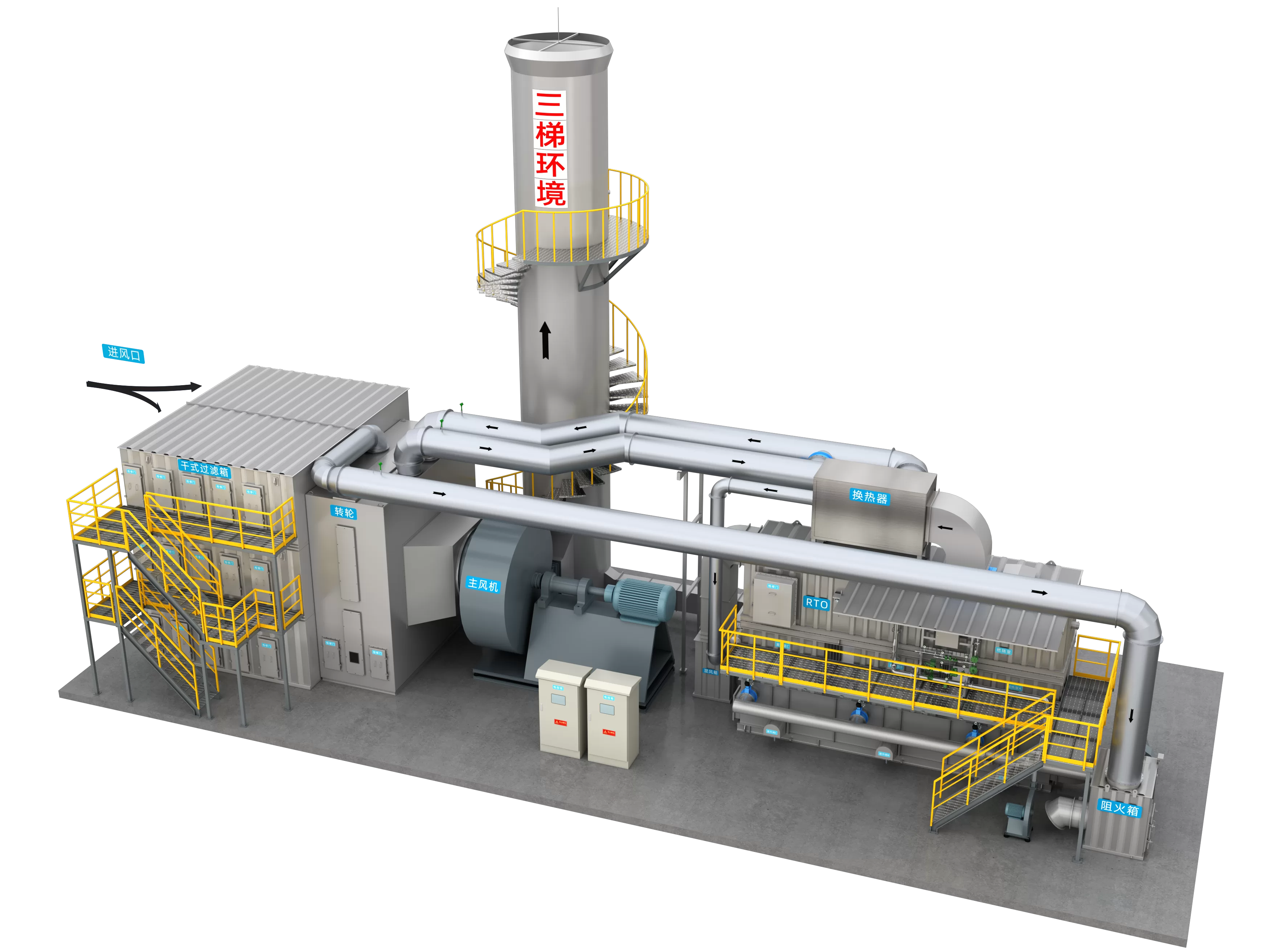

System Overview

The system utilizes the porous adsorption properties of zeolite molecular sieves to adsorb and concentrate organic compounds. The concentrated organic matter is then fed into the RTO, where high-temperature oxidation (≥750℃) decomposes the carbon and hydrogen compounds into harmless by-products such as CO₂ and H₂O.

PRODUCT OVERVIEW logo
// System Process Flow

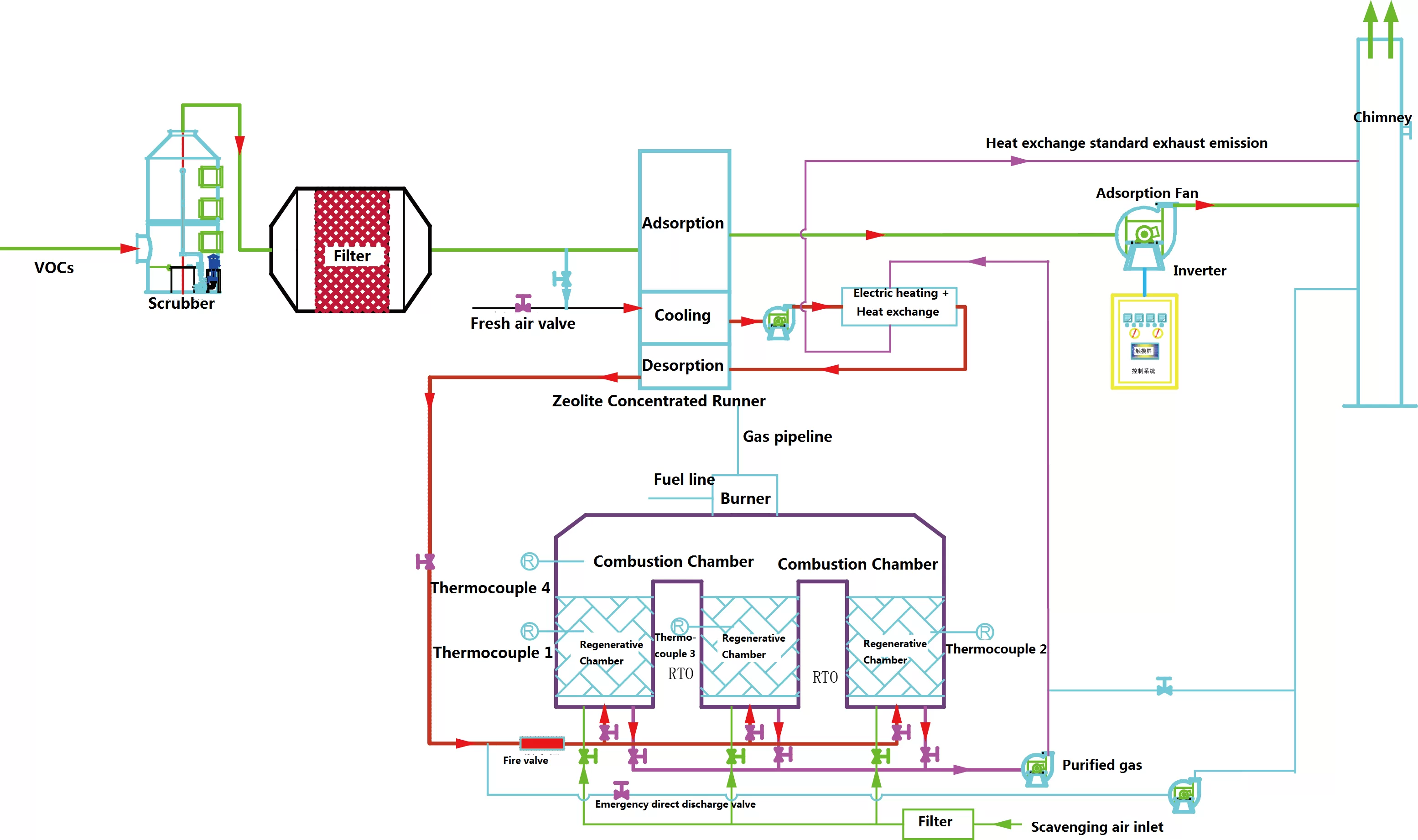

System Process Flow

System Process Flow logo
/// Product Features

Product Features

Core capabilities designed for reliable treatment performance, efficient operation and long service life.

  • 90% adsorption efficiency
    01

    90% adsorption efficiency

    5–20x concentration, significantly reducing the airflow volume requiring downstream RTO treatment.

  • 95% heat recovery efficiency
    02

    95% heat recovery efficiency

    enabling self-sustaining thermal operation when the concentration of the enriched exhaust gas reaches the auto-ignition point.

  • Withstands temperatures up to 400°C
    03

    Withstands temperatures up to 400°C

    Zeolite molecular sieves are inorganic, non-combustible materials, making the desorption process safer.

  • High-quality hydrophobic zeolite rotor
    04

    High-quality hydrophobic zeolite rotor

    Service life of over 5–8 years.

  • Intelligent PLC control
    05

    Intelligent PLC control

    no manual supervision required.

  • Modular design
    06

    Modular design

    allows for rapid on-site installation and easy maintenance.

// Applications

Applications

Application environments and exhaust scenarios supported by this equipment.

Applications
1 )

The system is primarily used in industries such as spray painting, printing, coatings, automotive painting, ink printing and dyeing, paper making, injection molding, coating processes, electronics manufacturing, and the chemical industry.

// Selection Table

Selection Table

ModelApplicable air volume
(m/h)
Area size
L×W(m)
3T-ZLR-0101000012m*6m
3T-ZLR-0202000015m*6m
3T-ZLR-0404000020m*8m
3T-ZLR-0505000024m*8m
3T-ZLR-10010000028m*9m
3T-ZLR-15015000032m*10m
3T-ZLR-20020000035m*12m
