// Product Introduction

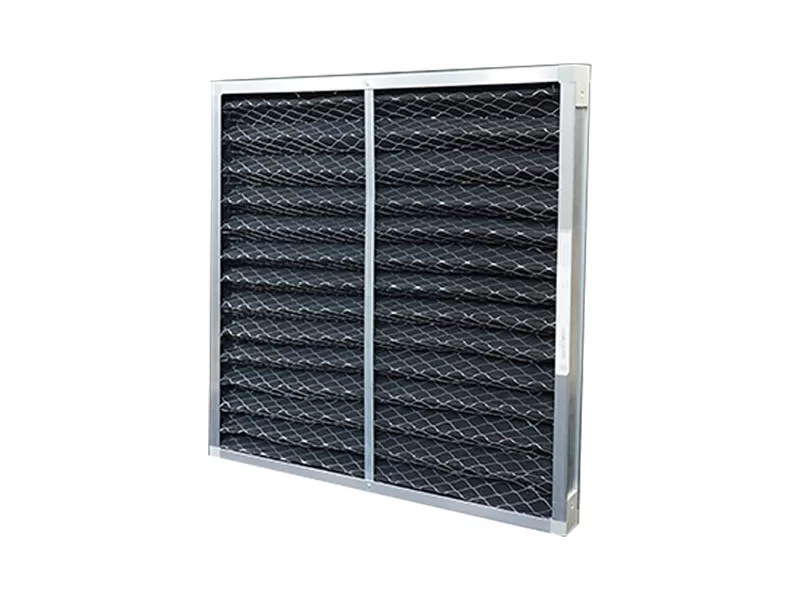

Activated Carbon Cotton Air Filter

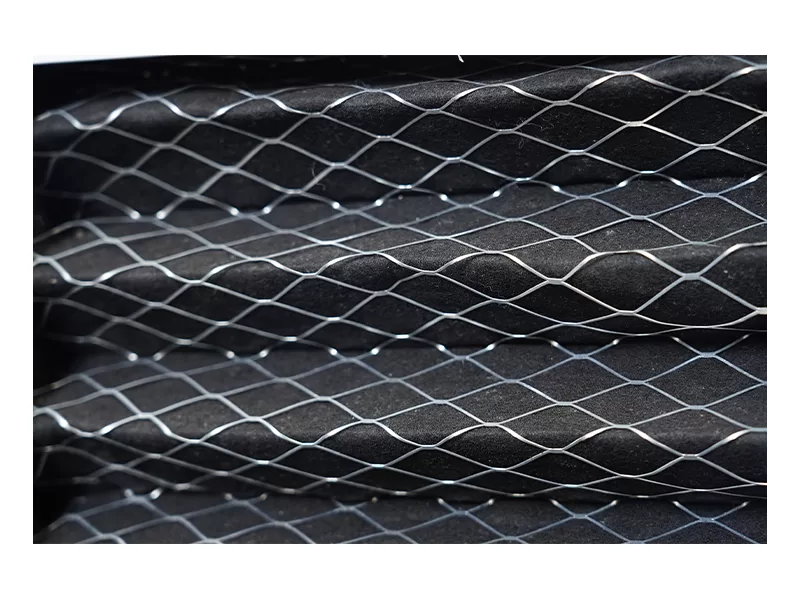

Activated carbon cotton air filters combine physical dust removal with chemical adsorption. Utilizing synthetic fiber cotton as a substrate—onto which activated carbon powder or fibers are bonded via impregnation or adhesion processes—they are primarily used to remove odors, harmful gases (such as formaldehyde), and fine dust from the air.

Get Quote
Share:
// PRODUCT OVERVIEW

Specification

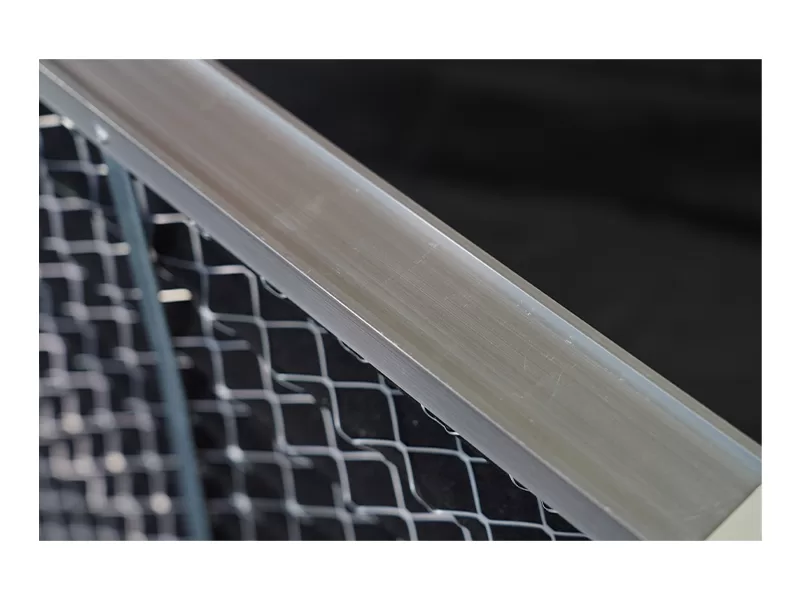

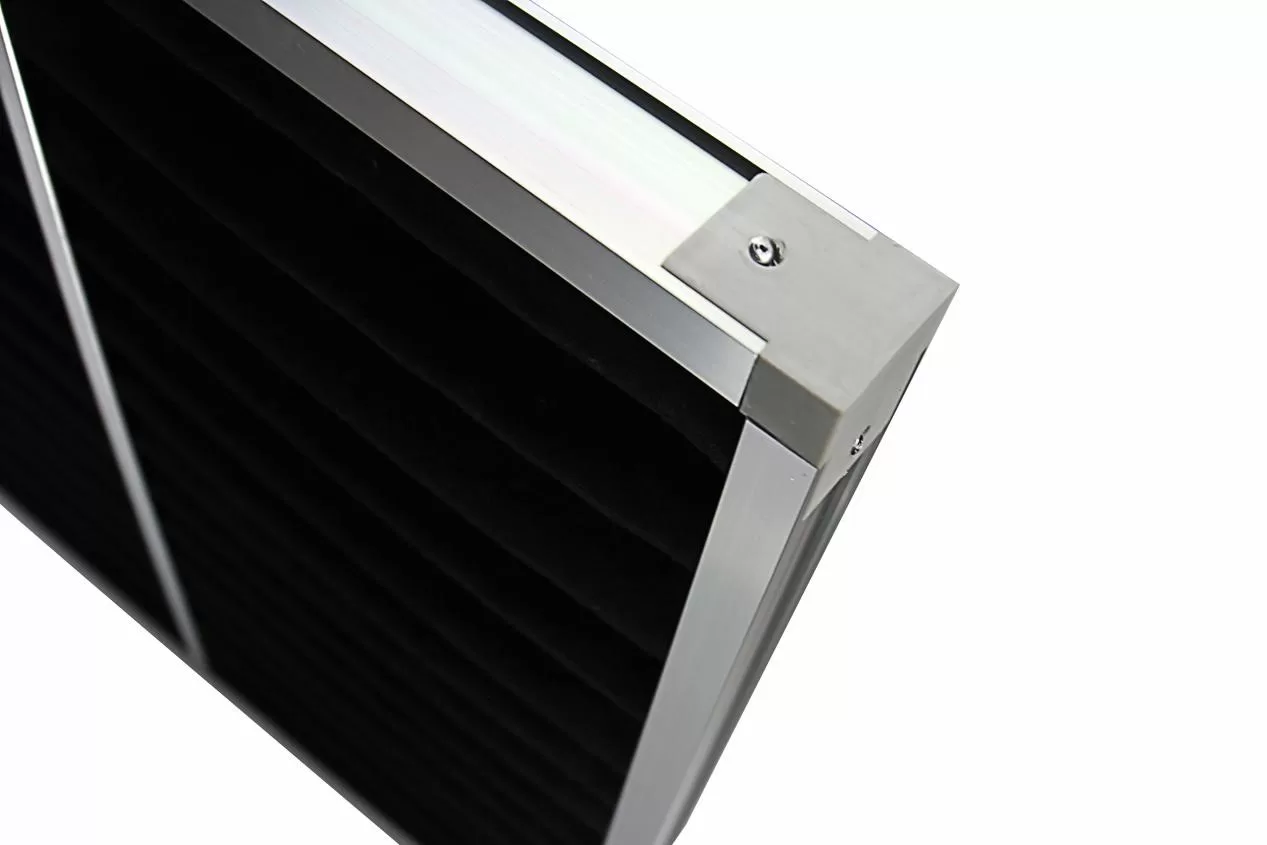

Frame: Galvanized sheet metal or Extruded anodized Aluminium profile, 46mm, 25mm

Temperature: ≤50°C

Humidity: ≤100%RH

Recommended Final Pressure drop: 250Pa

Efficiency: G3(EN779): Avg.arrestance 80%

PRODUCT OVERVIEW logo
// Applications

Applications

Industrial Waste Gas PurificationUsed to treat VOC emissions—such as benzene, phenol, and aldehyde—generated in industries like chemical manufacturing and spray painting.
Electronics and Semiconductor FacilitiesServes as an AMC (Airborne Molecular Contamination) filter to protect sensitive processes, such as precision chip manufacturing, from chemical gas contamination.
Bio-pharmaceuticals and Food ProcessingUsed to maintain air quality in specific production areas, preventing odors and microbial contamination.
// Selection Table

Selection Table

TypeOutside Dimensions(mm)Efficiency (%)Rated Air Flow (m3/h)Initial ResistanceResistance Humidity (%)Fireproofing class
(Pa)InH2o
Wave292*292*4580-90%
(Arrestance)
80040-500.16-0.2100Class2
(UL-900-1996)
592*592*453200
292*592*451600
490*592*452700

Customized size is accepted                                 Note: Pressure drop ±15%
