// Product Introduction

Metal Mesh Filter

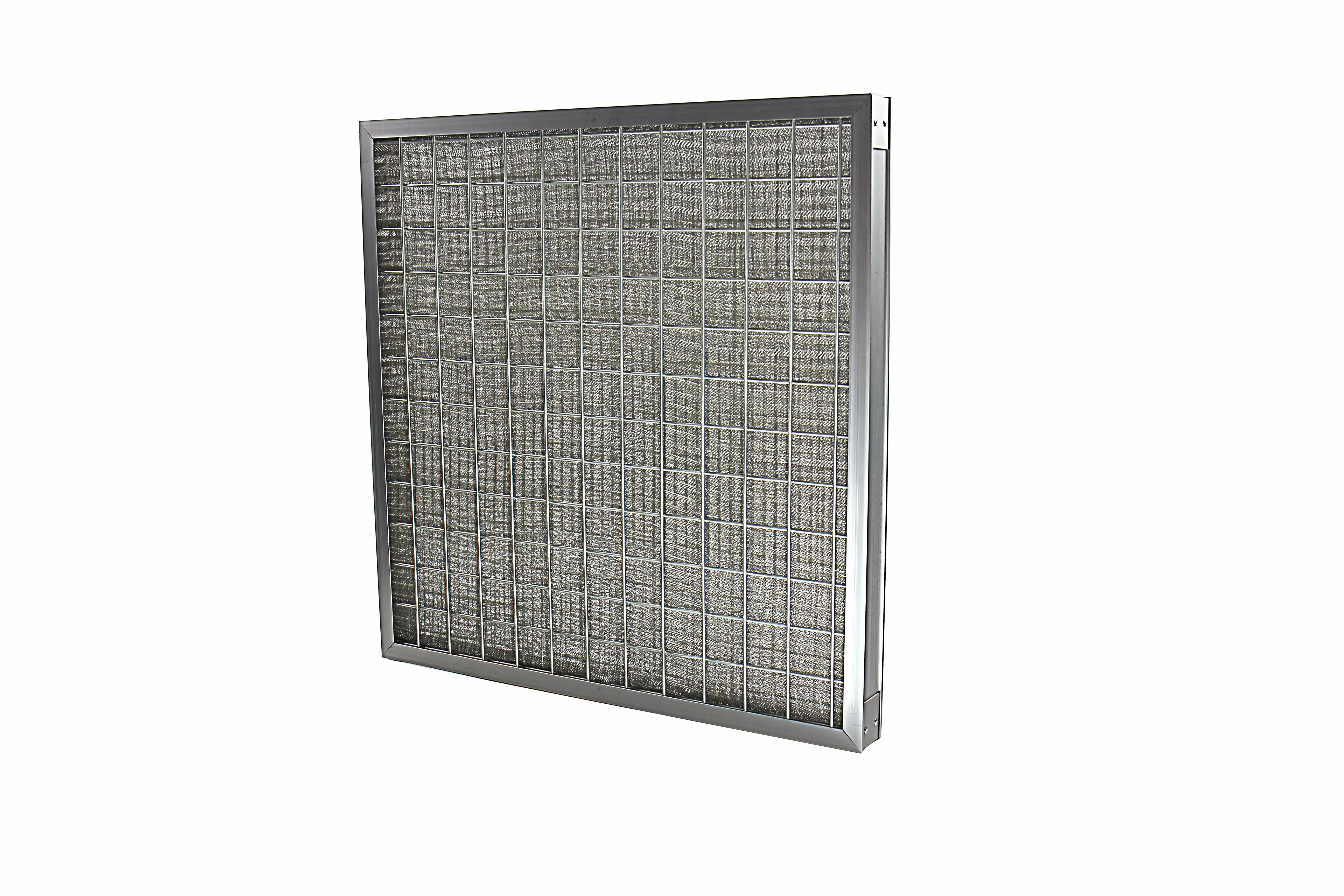

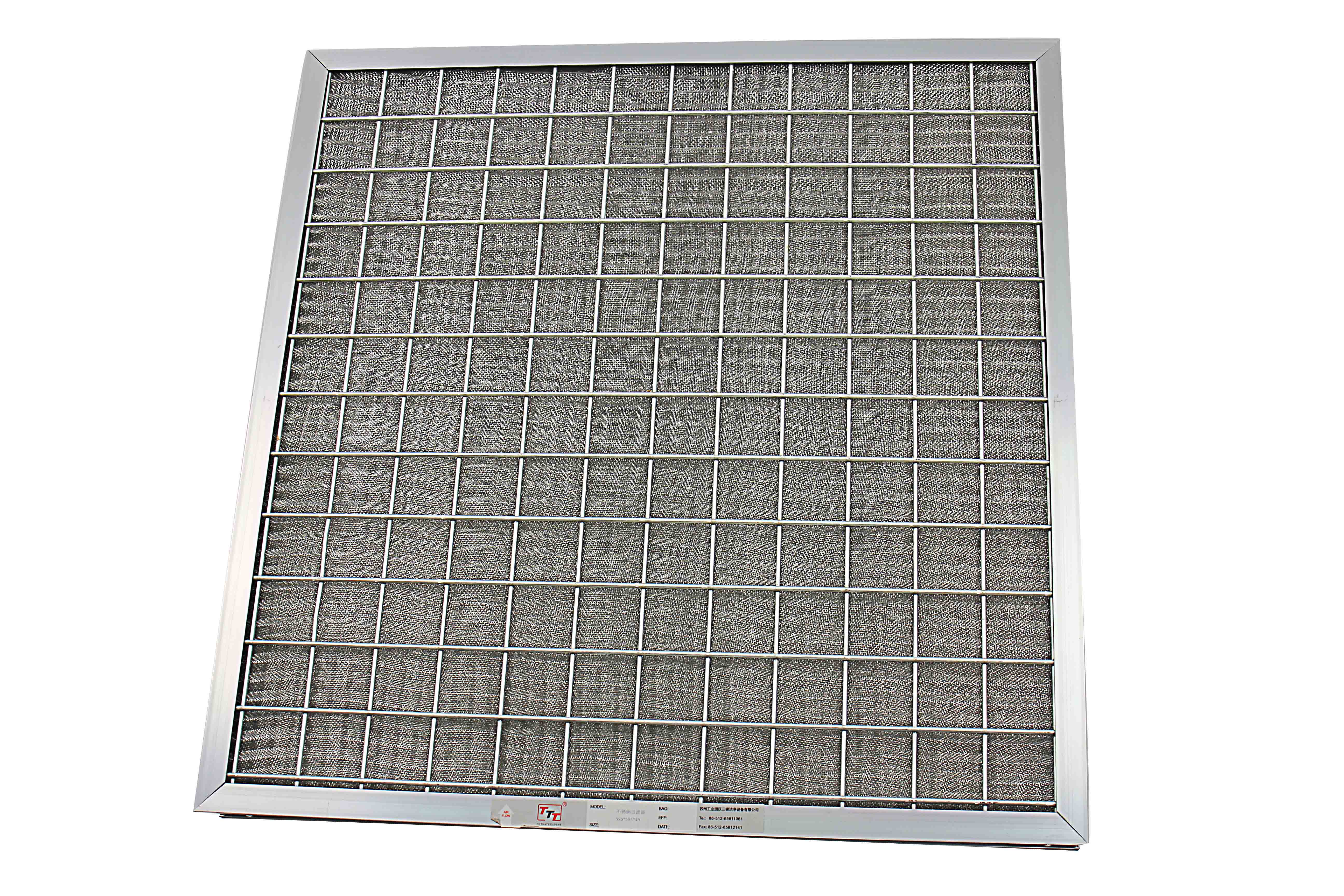

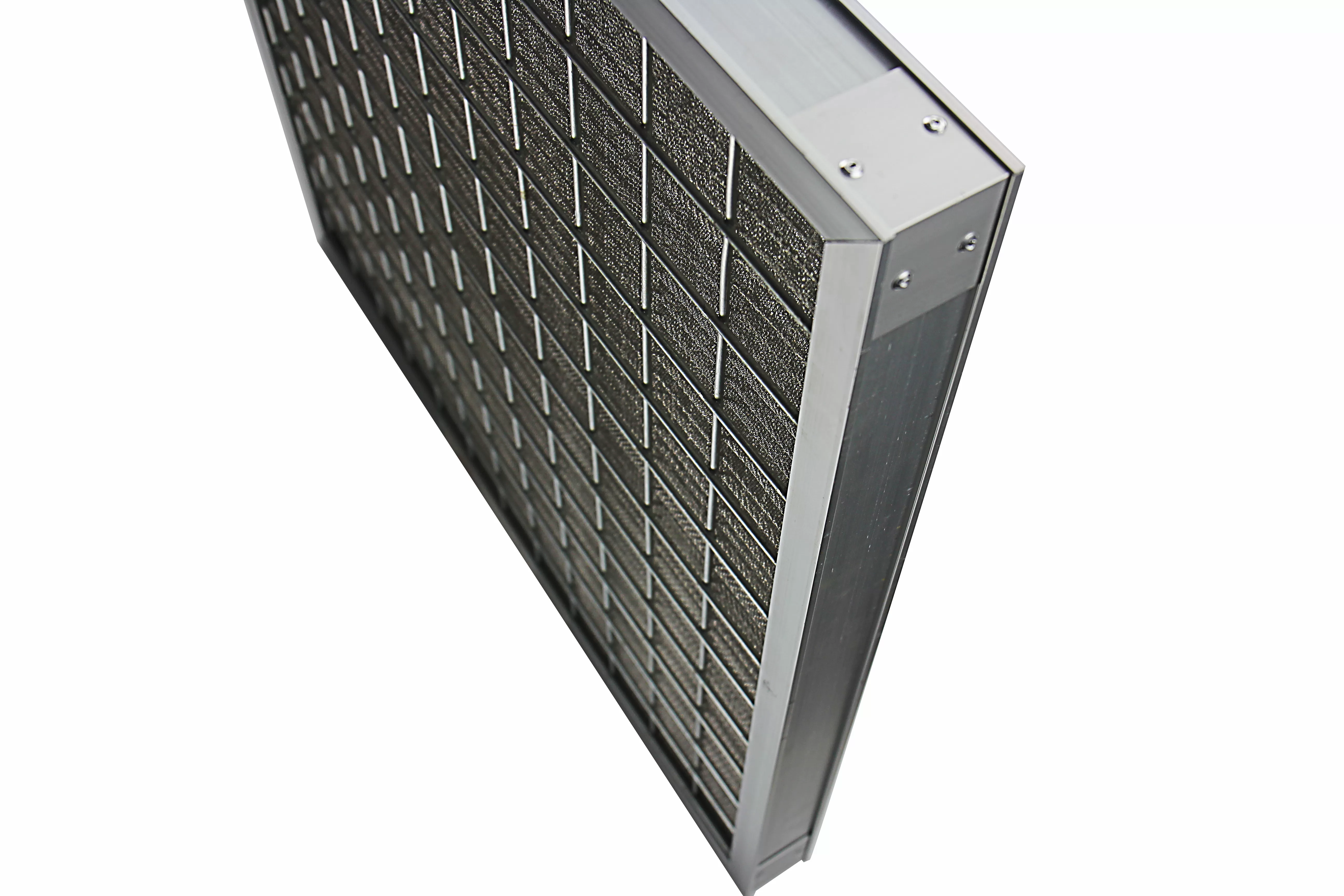

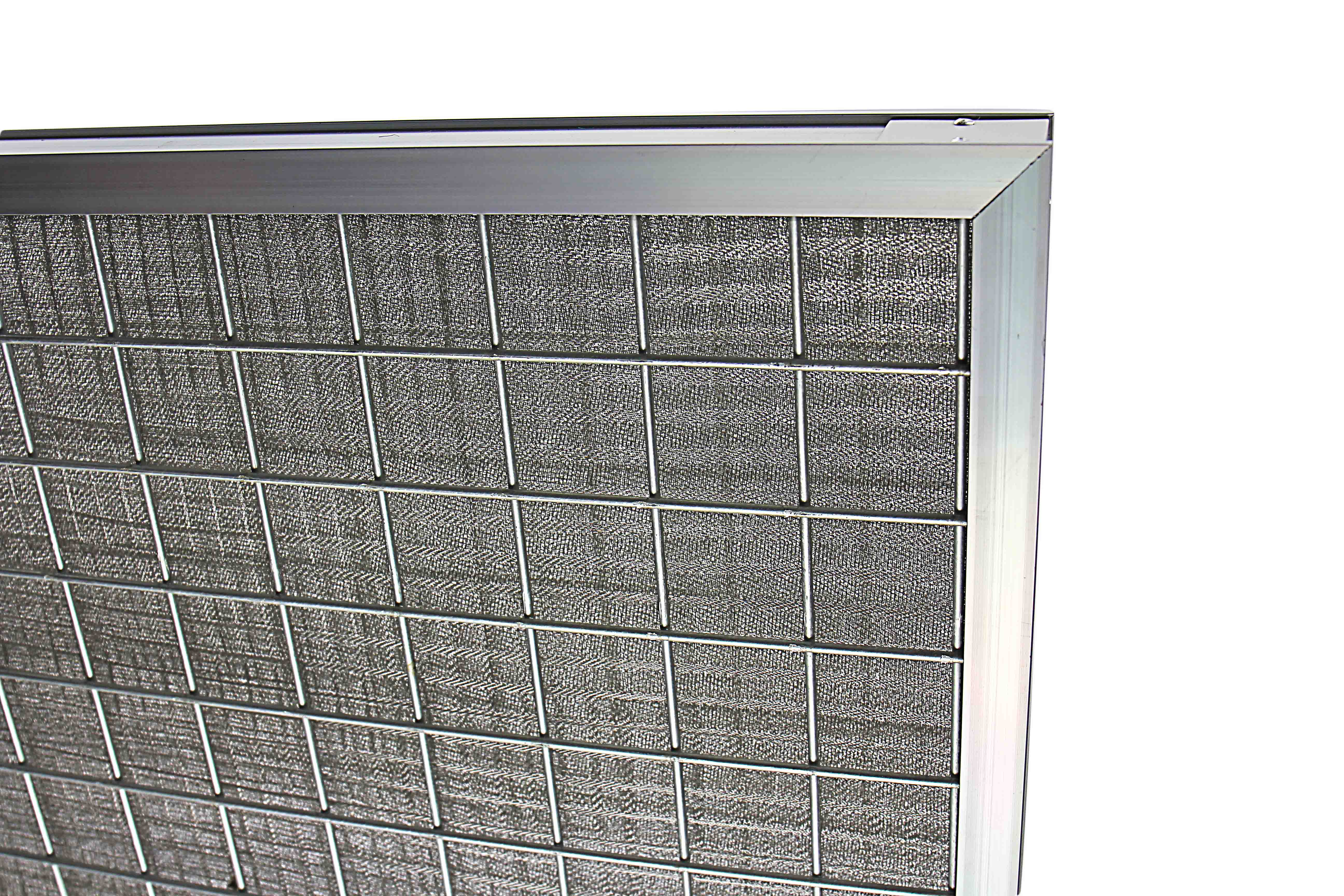

The Metal mesh air filters are constructed from multiple layers of corrugated aluminum foil mesh or stainless steel wire mesh. Its key features include high airflow capacity, low resistance, and re-usability through washing. It is typically used to capture large dust particles, debris, and oil mist from the air.

Get Quote
Share:
// PRODUCT OVERVIEW

Specification

Frame: SUS304 or aluminum alloy (surface oxidation), 10mm,20mm,25mm,45mm

Filter material: aluminum mesh, sus304 stainless steel mesh

temperature :≤450°C

Moisture resistance: ≤100%RH

Protective net: aluminum alloy net or plastic sprayed steel net

Maximum pressure loss ≤60Pa

Efficiency: G2

Recommended maximum permissible final resistance: ≤120Pa

PRODUCT OVERVIEW logo
// Applications

Applications

HVAC SystemsUsed in central air conditioning and ventilation systems for large buildings—such as office complexes, shopping malls, hospitals, and airports—as a primary coarse pre-filter to capture large dust particles.
High-Temperature Industrial EnvironmentsSuitable for high-temperature curing ovens and hot-air ovens in coating plants, as well as for ceiling pre-filtration in spray booths and paint-curing rooms; capable of withstanding temperatures up to 350°C.
Heavy Industry and ManufacturingUsed for ventilation and air purification in sectors such as machinery manufacturing and mining, as well as for specialized ventilation filtration involving acidic or alkaline conditions in the chemical and pharmaceutical industries.
// Selection Table

Selection Table

NumberModelL
mm
W
mm
H
mm
Area
Airflow.pressure dropEfficiency
m³/hPaFeature 1Feature 2
Multi-layer metal mesh filter
1595*595*10mm592287200.7170030High temperature resistantWashableG2
2295*595*10mm592592201.4340030High temperature resistantWashableG2
3595*595*20mm592287461.2170050High temperature resistantWashableG2
4295*595*20mm592592462.4340050High temperature resistantWashableG2

Customized size is accepted                                 Note: Pressure drop ±15%
