// Product Introduction

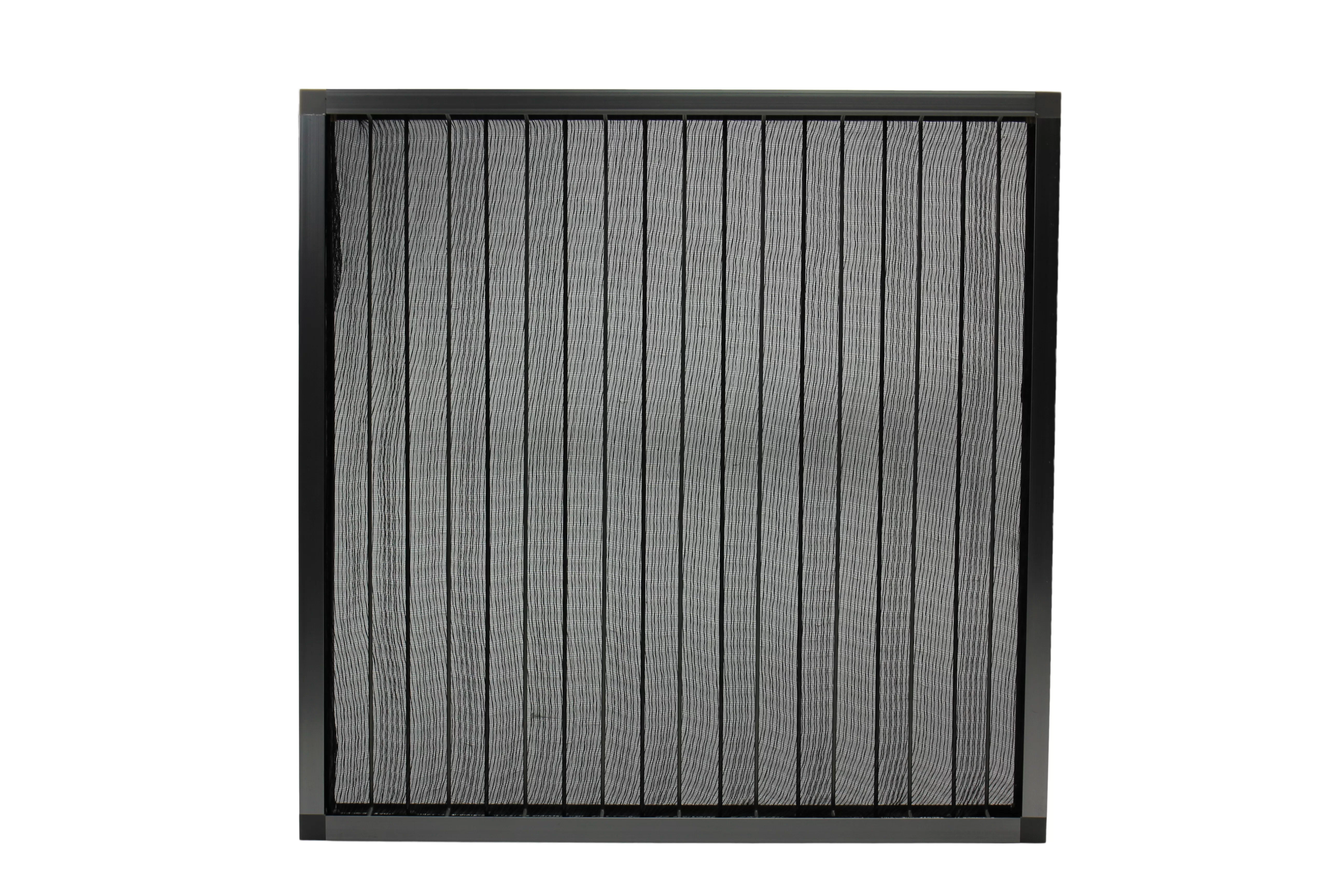

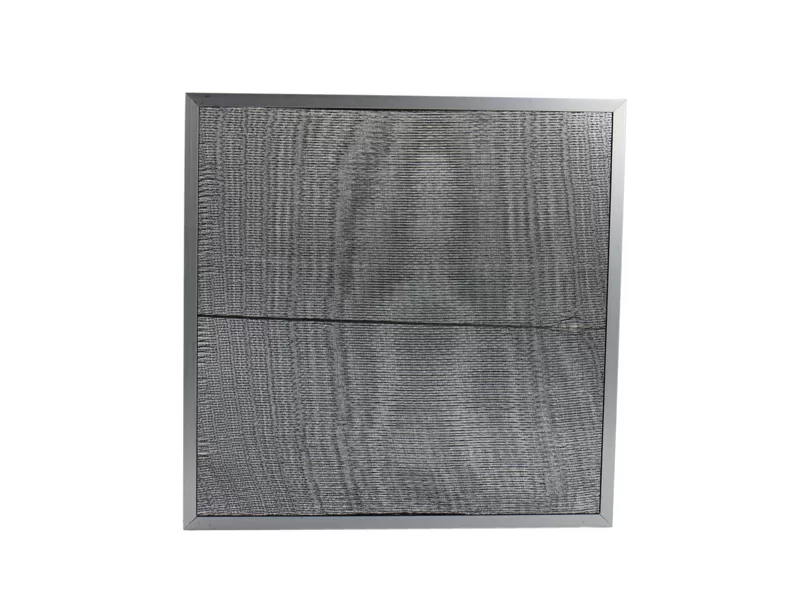

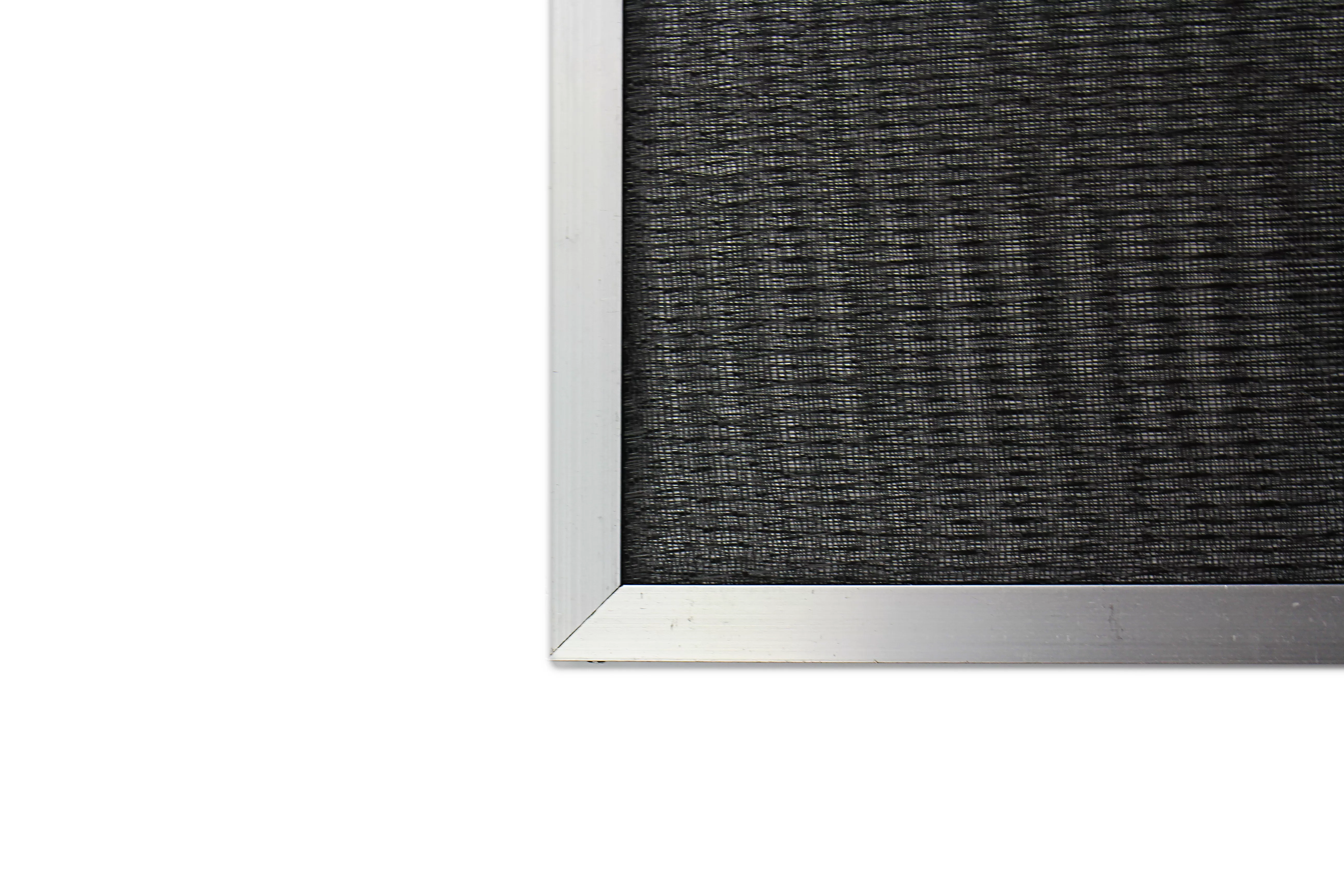

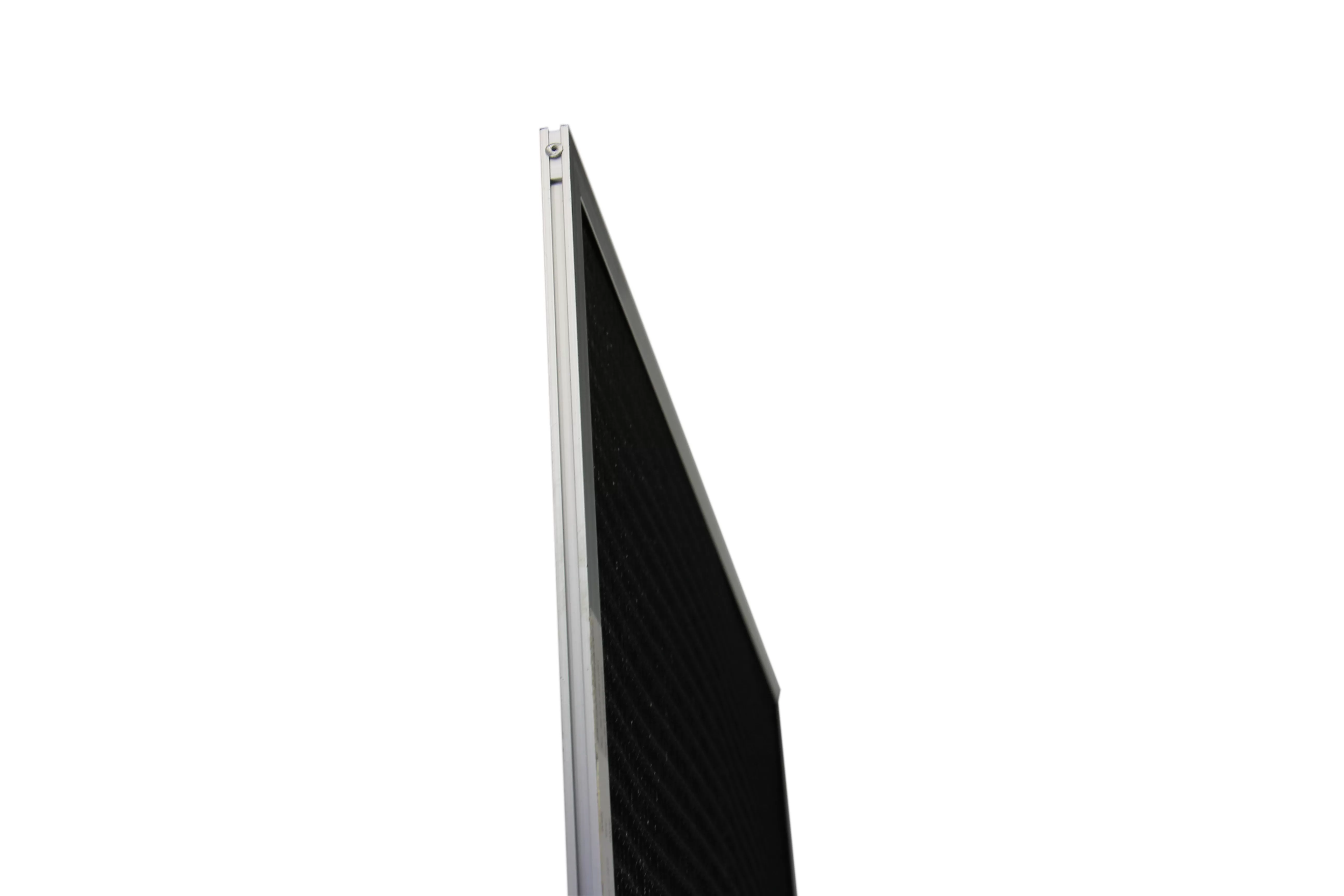

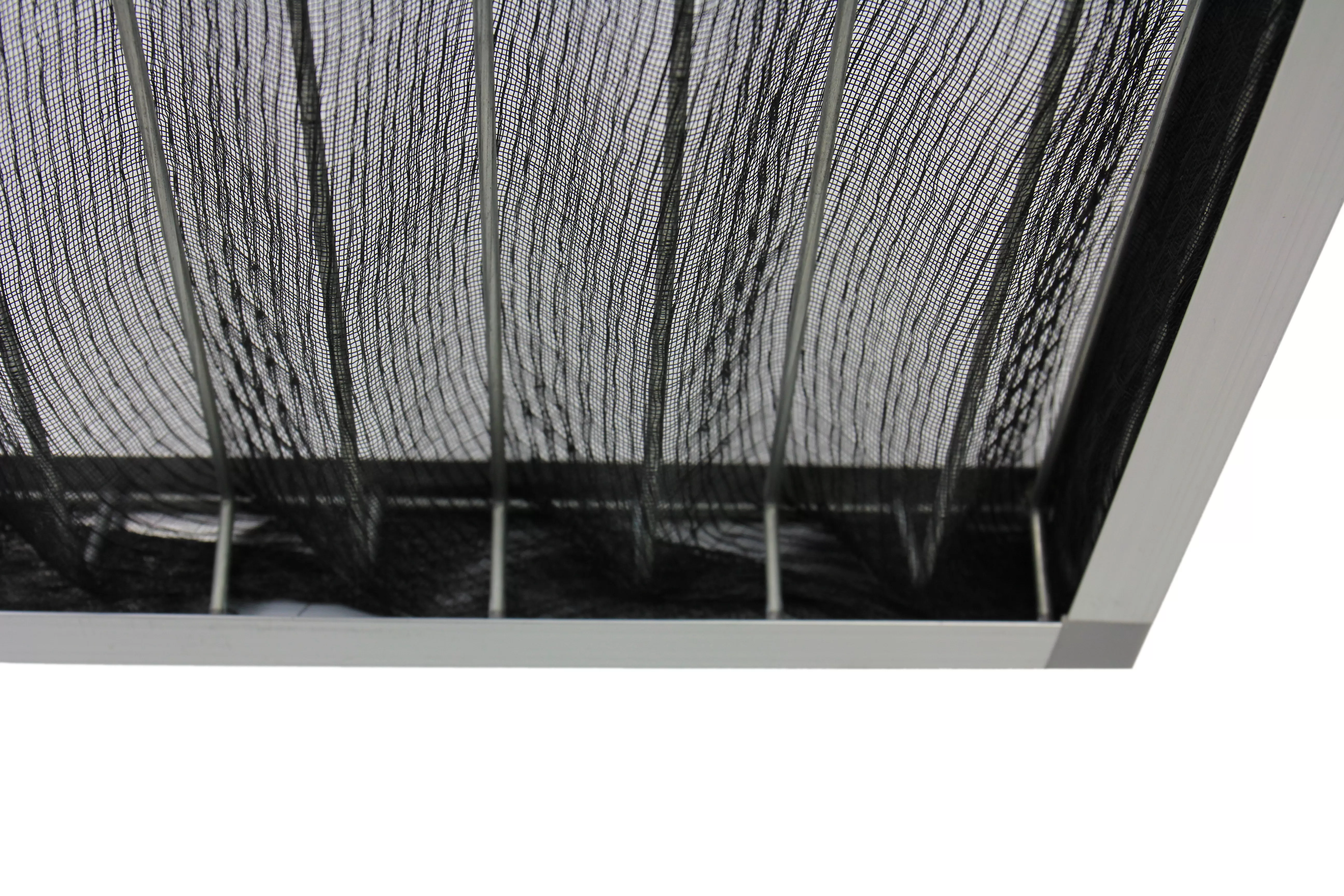

Washable Nylon Mesh Filter

The black Nylon Mesh Filter is is made of a fine black mesh material; its core functions are to capture large particles, keep out insects, and provide a discreet appearance. It is typically installed in ventilation systems, window screens, or equipment air intakes to serve as a first line of defense.

Get Quote
Share:
// PRODUCT OVERVIEW

Specification

Frame: Extruded anodized Aluminium profile, 10mm, 20mm

Temperature: ≤70°C

Humidity: ≤100%RH

Recommended Final Pressure drop: 450Pa

Efficiency: G2(EN779): Avg.arrestance 60%

PRODUCT OVERVIEW logo
// Applications

Applications

Residential and commercial air conditionersInstalled within the return air vent or panel to serve as a primary pre-filter, capturing large dust particles, hair, and debris from the air.
Air purification equipmentUsed as the initial physical coarse filter in purifiers, or combined with activated carbon to absorb mild odors and harmful gases.
// Selection Table

Selection Table

NumberModelL (mm)W (mm)H (mm)Area (m²)Airflow & Pressure DropEfficiency
m³/hPaAcid/Alkali ResistantWashable
1595*595*10mm595595100.4340025Acid/Alkali ResistantWashableG2
2295*595*10mm595295100.3170025Acid/Alkali ResistantWashableG2
3595*595*20mm595595200.4340025Acid/Alkali ResistantWashableG2
4295*595*20mm595295200.3170025Acid/Alkali ResistantWashableG2

Customized size is accepted                                 Note: Pressure drop ±15%
